Internal

Note the soldered EFI chip, which is socketed on the Joggler / OF1, the unpopulated microSD port on the right and the mis-spelling of 'kapton tape'.

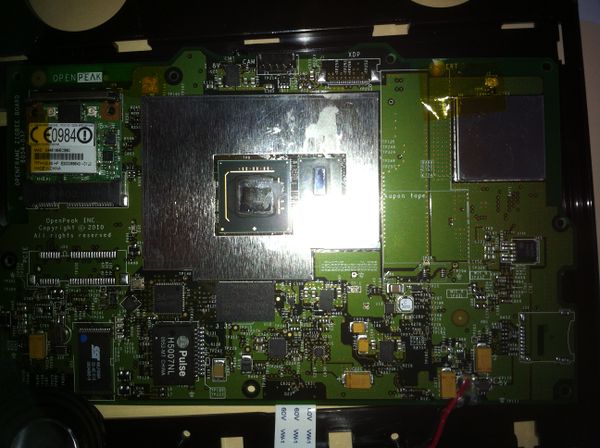

OpenFrame 2 Logic Board

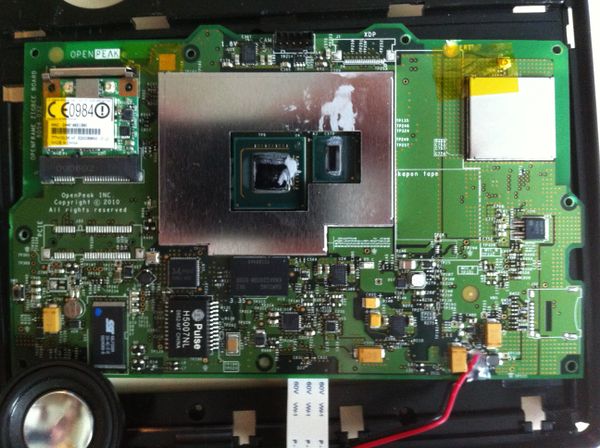

OpenFrame 2 Logic Board (Flash)
