Coreboot and SeaBIOS

Post by roobarb! » Thu Oct 25, 2012 11:52 pm

pete_c wrote:Thanks Andy!

I made up a little sleave of paper. That said though I am having some issues with the position putting pressure on the back of the LCD when I close and screw down the lid.
Ah, I had that problem when fitting micro SD readers. There's a remarkable amount of space available top-right, but that's probably not much help to you!
birdslikewires.net - home of the Reflash System, SqueezePlay (OS) and various tools for the Joggler!

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Fri Oct 26, 2012 2:09 am

Thanks Andy...wondering now if maybe I could get a longer than 6 cm ZIF cable. I mean maybe like 18-20 cm ZIF cable would take the SSD card to the top left or even just to the area where the USB WLAN stick is at.

I did find a 700mm ZIF cable...but that's a bit much.

Looking some more I am finding 15 and 25cm long 40-pin ZIF cables. I ordered both but thinking the 25cm might be a bit long.

Yes; I've angled the ZIF cable stretching it a bit.

Even on the CPU side above the speakers it fits but pushes the motherboard out and against the LCD. I keep playing with it. I've been trying to stick it on a smooth part of the motherboard. No luck yet. Attached is a series of pictures. Its really not noticible once the OS is loaded.

I'm using one of the Jogglers with mostly the internal NIC card not booting up (test one) so right now testing with an external USB device.

The above noted though switched over to using the Digi 7 port powered USB. Works much better even though its only USB 1.X. I can image the SSD drive over to an externally mounted via USB ZIF SSD. Works fine.
Attachments
- Pete

Auto mater

digiblue
Posts: 1
Joined: Tue Oct 30, 2012 2:05 am

Re: Coreboot and SeaBIOS

Post by digiblue » Tue Oct 30, 2012 2:21 am

Hi, inaxeon
Very thanks for your bios,that's a great gift for joggler.
and maybe I found a bug,if unplug the joggler power, bios will be reset system date 18xxx year,cause xp does not start properly, Hang dead before the appearance of the login page. Could the bios of the initial time is set to 2012 or other normal year, thank you!

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Wed Oct 31, 2012 2:42 pm

digiblue,

Mine will continue the boot process even though it shows a message about the date. That said I do a delay relating to running time syncing such that it waits until the Joggler is on the network, time / date syncs then runs the starting programs. I keep time internal to the network via an NTP server using a GPS for the time sync. I still have issues with the date; so I now check externally when it boots up and send a date command over to the Joggler remotely. I also sync the time via Tardis and circumvent the Wintel time services. I do similiar with the Jogglers running Linux as timekeeping is sort of a hobby for me. (collect old clocks too).
- Pete

Auto mater

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Wed Oct 31, 2012 8:06 pm

Whoa; amazed here today.

I just opened up a new (refurbished) Joggler (officially now the count is at 12 here of these amazing little boxes). It's modded exactly like the previously purchased Joggler. Already has the PATA port and all.

Just getting ready to update the flash to the most recent version of Seabios. I am curious about the NIC card on this one.

Curious cuz the last one appears to have two sound cards in it? It has a "Vega" driver plus the stock audio driver. Anyone ever see this?
- Pete

Auto mater

User avatar
Mevi
Posts: 774
Joined: Tue Oct 25, 2011 4:39 pm

Re: Coreboot and SeaBIOS

Post by Mevi » Wed Oct 31, 2012 9:25 pm

Really interested to read about these couple of pre-modded Jogglers you have picked up. Handy that they have that ZIF connector already. I keep meaning to drop Inaxeon a note to see if he's still ok to solder mine on.

Not seen a Joggler that was anything else than stock.

I've salvaged a PATA SSD from an acer netbook, one of a few I've ended up with while I pick through the parts to assemble a working one. I'm hoping I'll have a 'new' netbook tomorrow as I got the guts of an acer in the post today. I'm sure it would have been cheaper to just buy a new one when the power socket broke on mine. :D
I've Got The Moves Like Joggler

Windows XP Professional SP3 plus Tablet PC for O2 Joggler
http://www.jogglerwiki.com/forum/viewto ... ?f=2&t=305

How to build your own Windows XP for the Joggler
http://www.jogglerwiki.com/wiki/WindowsXP

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Wed Oct 31, 2012 10:02 pm

Funny; when I purchased the Joggler from the vendor and asked about the mods he said he knew nothing about the insides of the Jogglers; so the verbiage from the selling vendor is just a regular description of a regular working Joggler. I did notice the last one did not come with any antennas connected to the USB WLAN stick. None the less I remove them anyways. I will take pictures of this one. Its a bit harder to remove the motherboard to get to the flash rom as there are multiple cables wired (soldered) from the back to the motherboard. Such that the motherboard is tethered a bit to the cables; so you cannot remove the motherboard unless you remove more "stuff" behind it.

To date I have only soldered one ZIF on one Joggler. Using flux made it easy. I was a bit paranoid about removing a ZIF by baking it. That said that too was easier than I thought it would be. Since then though I have purchased more ZIF connectors but have not used any of them yet. I also recently purchased longer ZIF cables as the ZIF SSD drive even mounted flush to the motherboard pushes on it a bit distorting the backlighting illumination of the LCD a bit. Once I remove the WLAN card (even if I leave it place) the SSD drive will fit nicely in the same area.

I did find out to utilize the USB to ZIF device I needed a ZIF to LIF ZIF cable which is the cable with one tinned side flipped over. So the Kingspec drive I sent back to China was probably a good drive.

My sister has an Acer netbook. Its very nice. I have an Asus "mini" netbook and only utilize it when I travel; it can almost fit in my back pocket. I utilize a customized camera case for it. The ASUS utilize a PCiE type of SSD drive. (I have modded it a bit with an internal blue tooth card)

Right after I set up my basement workbench; I brought my regular laptop downstars and put it on the workbench. I was adjusting the magnifying glass lamp one night and it came out of the bracket dropping on the cover of the laptop; cracking the LCD splinter like. I did find a replacement. It wasn't too difficult to replace. Only thing was I had to remove the LCD and unplug it from the motherboard then split the cover open such that I could replace the LCD and new cover.
- Pete

Auto mater

User avatar
BuZz
Site Admin
Posts: 1450
Joined: Fri Mar 04, 2011 1:15 am

Re: Coreboot and SeaBIOS

Post by BuZz » Wed Oct 31, 2012 10:08 pm

I'm not happy about this at all. I mean with Pete hoarding all the jogglers. The amount he has will start affecting market value soon! :)

ilovemyjoggler
Posts: 706
Joined: Sun May 13, 2012 4:42 pm

Re: Coreboot and SeaBIOS

Post by ilovemyjoggler » Wed Oct 31, 2012 10:14 pm

pete_c wrote:
I just opened up a new (refurbished) Joggler (officially now the count is at 12 here..).
:shock:

User avatar
Mevi
Posts: 774
Joined: Tue Oct 25, 2011 4:39 pm

Re: Coreboot and SeaBIOS

Post by Mevi » Wed Oct 31, 2012 10:47 pm

I don't actually NEED another netbook as I just got a 12" HP ultraportable for silly money on eBay. It's awesome and still within it's 3 year warrenty.

Need for netbook aside, it's become a 'thing', and i'll likely never rest until it works. I figure the final working netbook will go to the kids for them to destroy. :roll:
I've Got The Moves Like Joggler

Windows XP Professional SP3 plus Tablet PC for O2 Joggler
http://www.jogglerwiki.com/forum/viewto ... ?f=2&t=305

How to build your own Windows XP for the Joggler
http://www.jogglerwiki.com/wiki/WindowsXP

User avatar
roobarb!
Posts: 1531
Joined: Sat Mar 05, 2011 1:30 pm
Location: Manchester, UK
Contact:

Re: Coreboot and SeaBIOS

Post by roobarb! » Thu Nov 01, 2012 12:15 am

pete_c wrote:Whoa; amazed here today.

I just opened up a new (refurbished) Joggler (officially now the count is at 12 here of these amazing little boxes). It's modded exactly like the previously purchased Joggler. Already has the PATA port and all.

Just getting ready to update the flash to the most recent version of Seabios. I am curious about the NIC card on this one.

Curious cuz the last one appears to have two sound cards in it? It has a "Vega" driver plus the stock audio driver. Anyone ever see this?
I know what you've got there. It's a Joggler with a full OpenFrame 1 board. That's a rarity!

Basically, the Joggler has no DECT hardware (not required by O2, so not normally populated on the board). Yours would seem to have a full board; the Philips VegaOne will be the audio interface to chat to the DECT phone. As far as I knew only the Telefonica Orby had that. Perhaps they've been using Orby boards to repair Jogglers? Makes sense as they're both off sale now.

BTW, if anyone ever finds a Telefonica Orby and the matching phones, I would be very interested in having them! :)
birdslikewires.net - home of the Reflash System, SqueezePlay (OS) and various tools for the Joggler!

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Thu Nov 01, 2012 1:47 am

Thanks Andy. So I have two of those. So is there another wireless interface for the DECT telephone inside of it?

They came from a vendor on Ebay selling quite a few of them for around $50 USD.

Yup here the wife is wondering about a Joggler in just about every room. :ugeek:
- Pete

Auto mater

-=xXx=-
Posts: 146
Joined: Tue Mar 15, 2011 11:26 am

Re: Coreboot and SeaBIOS

Post by -=xXx=- » Fri Nov 02, 2012 1:07 am

Hi...
Is there Coreboot and SeaBIOS somewhere available for download ?
And it works stable with windows xp ?

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Fri Nov 02, 2012 7:05 pm

-=xXx=- contact inaxeon regarding the new bios.

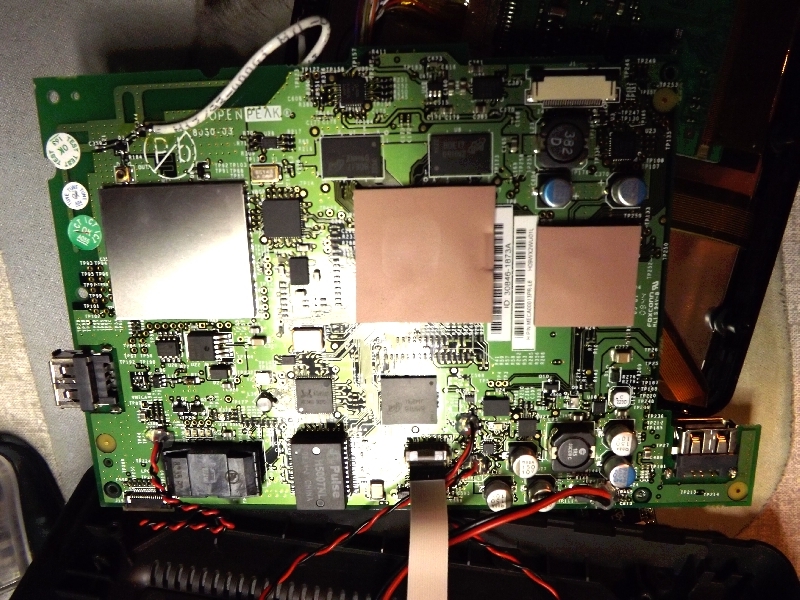

OK so I have decided that the two newest Jogglers are "keepers". These are using one large metal heatsink mounted in the same fashion as O2 Openpeak Jogglers. The wireless USB stick provided; without the wired antennas; has the antenna integrated into the stick itself as traces with no mini wireless terminals on it. I have taken some pictures of the motherboard and inside of the OpenPeak "refurbished" Joggler and will attach the pictures to this post.
Attachments
- Pete

Auto mater

User avatar
Mevi
Posts: 774
Joined: Tue Oct 25, 2011 4:39 pm

Re: Coreboot and SeaBIOS

Post by Mevi » Fri Nov 02, 2012 8:49 pm

those metal shims on the atom and GMA and the big heatsink are new for me - not seen those before. Good stuff!
I've Got The Moves Like Joggler

Windows XP Professional SP3 plus Tablet PC for O2 Joggler
http://www.jogglerwiki.com/forum/viewto ... ?f=2&t=305

How to build your own Windows XP for the Joggler
http://www.jogglerwiki.com/wiki/WindowsXP

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Fri Nov 02, 2012 11:18 pm

Those are rubberized and they sit against the metal heatsink. Once side of the metal heatsink has small fins on it. I haven't checked to see how this one runs XP and whether the NIC works well in it. The other one has been SeaBios'd. That said it looks to be that Seabios itself will not work so far with the NIC. Do you have any seabios'd Jogglers with a working XP NIC Mevi?
- Pete

Auto mater

User avatar
roobarb!
Posts: 1531
Joined: Sat Mar 05, 2011 1:30 pm
Location: Manchester, UK
Contact:

Re: Coreboot and SeaBIOS

Post by roobarb! » Sat Nov 03, 2012 1:17 am

That silver square on the board is the DECT hardware which is unpopulated on the Joggler.

Do these actually have 'Joggler' embossed onto the back casing?
birdslikewires.net - home of the Reflash System, SqueezePlay (OS) and various tools for the Joggler!

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Sat Nov 03, 2012 3:55 am

They have OpenPeak embossed on the back. So would a DECT phone work with this device?
- Pete

Auto mater

User avatar
roobarb!
Posts: 1531
Joined: Sat Mar 05, 2011 1:30 pm
Location: Manchester, UK
Contact:

Re: Coreboot and SeaBIOS

Post by roobarb! » Sat Nov 03, 2012 12:45 pm

pete_c wrote:They have OpenPeak embossed on the back. So would a DECT phone work with this device?
Hehe - so they're really not Jogglers at all! You've got the real deal! :)

If you figure out how to pair them, then yes - that's exactly what the OpenFrame 1 was designed for. There's bound to be loads of DECT stuff on the web for Linux - certainly not my area, I've seen a good few bits of PBX software out there in the web. There should be support in the native OS as well.

In fact, what OS version was supplied on your OpenFrames? I've been compiling a firmware archive and it might be very useful to have...
birdslikewires.net - home of the Reflash System, SqueezePlay (OS) and various tools for the Joggler!

User avatar
pete
Posts: 2799
Joined: Mon Aug 01, 2011 6:33 am
Location: Time Traveler

Re: Coreboot and SeaBIOS

Post by pete » Sat Nov 03, 2012 12:58 pm

I reflashed the first one and never looked. I have not reflashed the second one.

It boots with an OpenPeak logo into the Joggler OS. I can just copy the PNPIII updated Joggler OS over to a flash stick if you want it. The OS looks familiar so I am guessing its the stock one.

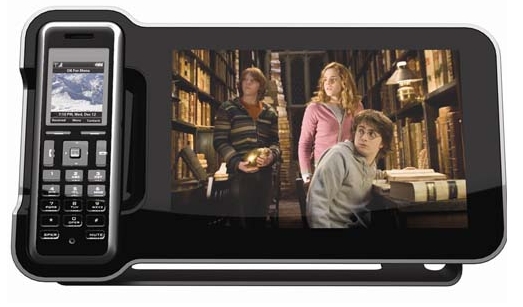

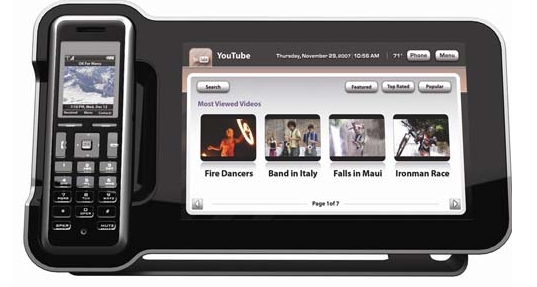

I found pictures of the Verizon Openframe offerings from a while ago. Very impressive; geez wondering now if there are some "test" units out there...
Attachments
- Pete

Auto mater
